Description
Overview:
Repair of cast/ductile pipe.

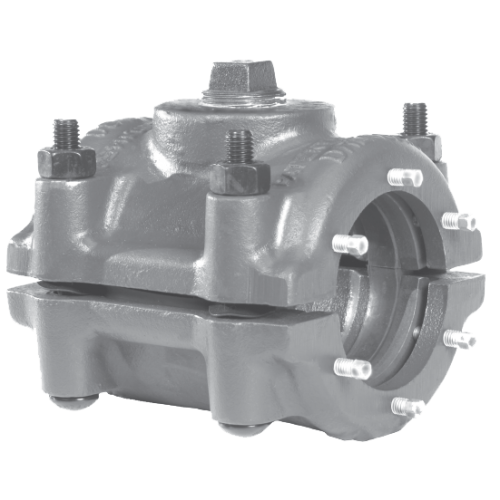

Dresser Style 80 Split Ready-Pack Sleeves are used to enclose and permanently repair breaks, splits and holes in cast iron pipe. Style 80 sleeves can also be used as an efficient, low-cost tapping sleeve for branch service connections.
Style 80 sleeve bodies are cast from close-grained gray iron (malleable iron in inch size). Steel follower rings on each end are completely enclosed in the sleeve body. Carbon steel set screws are drawn up against the follower ring to compress the gasket creating total circumferential sealing on the pipe. Side bolts, which are fully enclosed within the sleeve body to prevent corrosion, are tighten to compress side gaskets providing a complete leak proof seal.
Dresser Style 80 sleeves are recommended for all customary pressures where pipe wall thickness is in conformity with specifications for standard cast iron pipe.
